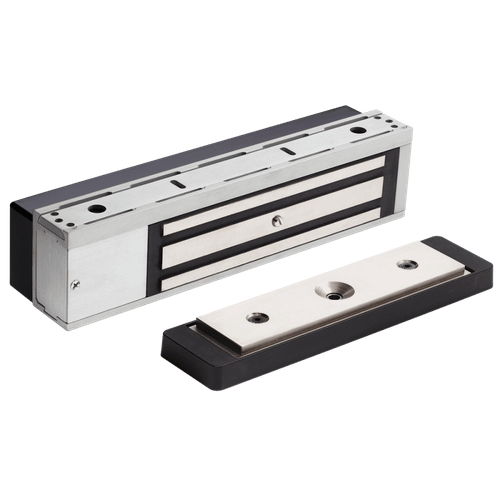

Schlage M490DEP Electromagnetic Lock, 1500 lbs. Holding Force, Delayed Egress, Magnetic Bond Sensor, Relock Time Delay, Door Position Switch

The Schlage Electronics M490DEP Electromagnetic Lock is a high-performance commercial-grade locking solution designed for secure access control applications requiring reliable holding strength and delayed egress functionality. Featuring a powerful 1,500 lbs. holding force, this electromagnetic lock provides enhanced security for commercial doors while maintaining smooth and dependable operation.

The M490DEP includes a Delayed Egress feature, allowing controlled exit while supporting security requirements, along with a Magnetic Bond Sensor (MBS), relock time delay, and door position switch for improved monitoring and access control integration. Its durable aluminum construction and satin aluminum clear anodized finish provide long-lasting performance in demanding commercial environments.

Designed for flexibility, the lock operates on 12/24 VDC power and is UL listed for UL 10C 3-hour fire rating and UL 294, making it suitable for a wide range of commercial security applications.

Product Features:

• 1,500 lbs. holding force electromagnetic lock

• Delayed egress functionality for controlled exit applications

• Magnetic Bond Sensor (MBS) for lock status monitoring

• Door Position Switch for enhanced security monitoring

• Relock time delay capability

• Commercial-grade aluminum housing

• Satin Aluminum Clear Anodized finish (628/US28)

• UL 10C 3-hour fire rated and UL 294 listed

• Compatible with 12/24 VDC access control systems

Specifications:

• Manufacturer: Schlage Electronics

• Model: M490DEP

• Installation: Commercial

• Holding Force: 1,500 lbs.

• Operating Voltage: 12/24 VDC

• Current Draw: 750mA @ 12VDC / 450mA @ 24VDC

• Magnet Dimensions: 12-1/2" x 3" x 3-1/16"

• Switch Type: Door Position Sensor

• Material: Aluminum

• Finish: 628/US28 Satin Aluminum Clear Anodized

• Dimensions: 12.5" L x 3" W x 3" H

• Ship Weight: 16 lbs.

• Warranty: Limited Warranty

The Schlage M490DEP is an ideal choice for offices, healthcare facilities, government buildings, and other commercial locations requiring dependable electromagnetic locking with advanced delayed egress security features.
