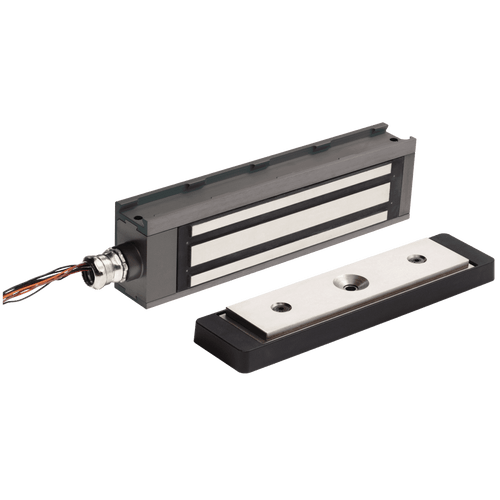

Schlage M490G Gate Electromagnetic Lock, 1500 lbs. Holding Force, MBS/DSM

The Schlage Electronics M490G Gate Electromagnetic Lock is a high-performance commercial-grade locking solution designed for gate and perimeter security applications. Featuring a powerful 1,500 lbs. holding force, this electromagnetic lock provides reliable access control protection for demanding environments.

The M490G includes Magnetic Bond Sensor (MBS) and Door Status Monitoring (DSM) capabilities, allowing integration with access control systems for enhanced monitoring and security management. Its durable aluminum construction and satin aluminum clear anodized finish provide long-lasting performance in commercial installations.

Engineered for versatility, the lock operates on 12/24 VDC power and supports a wide range of access control applications. The Schlage M490G is UL 10C 3-hour fire rated and UL 294 listed, making it a dependable choice for commercial security applications requiring strength, compliance, and reliability.

Product Features:

• 1,500 lbs. holding force for secure gate locking applications

• Includes Magnetic Bond Sensor (MBS) and Door Status Monitoring (DSM)

• Designed for commercial access control installations

• Dual voltage operation: 12/24 VDC

• Durable aluminum housing construction

• Satin Aluminum Clear Anodized finish (628/US28)

• UL 10C 3-hour fire rating and UL 294 listed

• Compact design for flexible installation

Specifications:

• Manufacturer: Schlage Electronics

• Model: M490G

• Installation Type: Commercial

• Base Material: Aluminum

• Holding Force: 1,500 lbs.

• Operating Voltage: 12/24 VDC

• Current Draw: 650mA @ 12VDC / 350mA @ 24VDC

• Magnet Size: 25-1/16" x 3" x 3-1/16"

• Product Dimensions: 11" L x 1.75" W x 3" H

• Finish: 628/US28 Satin Aluminum Clear Anodized

• Ship Weight: 14 lbs.
