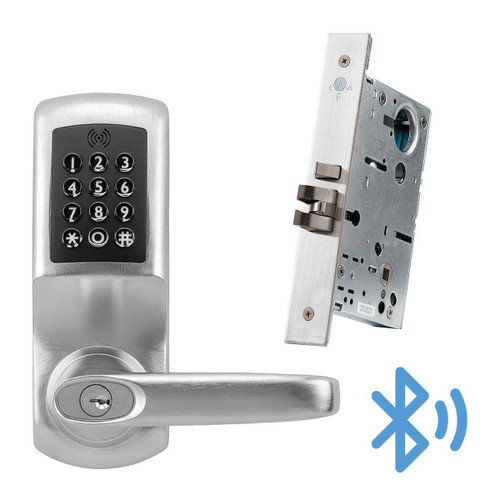

KIC5550 KWB BLE & Wi-Fi Enabled Lockset with Mortise Lock Body

KIC5550 KWB BLE & Wi-Fi Enabled Lockset with Mortise Lock Body

ANSI Grade 2, BLE & WiFi Enabled Lockset with Mortise Lock Body

The KIC5510 KWB lockset is a commercial grade smart lock designed for large enterprises, offices and commercial properties and can withstand moderate daily traffic. The smart lock utilizes built-in Wi-Fi to connect directly to the internet via existing networks, allowing property owners to manage access remotely and affordably extend access control deeper into buildings beyond traditional wired exterior doors.

Technical Specification

Batteries: 4 x AA / (1 battery life with typical use)
Code Capacity: 3500
Code Length: 4-10 digits
Communication Standards: 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)
Event Audit Trail: 1000 stored offline
Door Handing: Right, left, reversible
Functions: Classroom, storehouse
Access Types: PIN, ReadyPIN, Card, Mobile
Scheduling: Lock schedules User schedules, Holiday exceptions
Locking Device: Tubular latch, mortise latch, exit bar
Backset: 2⅜” (60mm) & 2¾” (70mm)
Door Thickness: 1⅜”-2⅜” (35mm-60mm)
Ratings: ANSI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017, UL 3hr Fire
