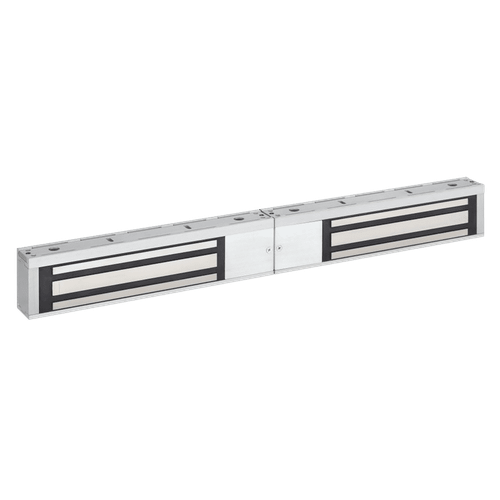

Schlage M492 Double Electromagnetic Lock, 1500 lbs. Holding Force

Schlage Electronics M492 Double Electromagnetic Lock – 1500 lb Holding Force

The Schlage Electronics M492 is a Grade 1 double electromagnetic lock designed to provide dependable high-security locking for commercial applications. With a powerful 1500 lb. holding force, this electromagnetic lock is ideal for securing doors in conjunction with access control systems, push bars, request-to-exit devices, or other electronic locking solutions.

Part of the Schlage M400 Series, the M492 features a durable aluminum housing and a compact design that delivers reliable performance with minimal maintenance. Its fail-safe operation provides secure access management where permitted by building codes, making it suitable for a wide range of commercial and institutional environments.

The electromagnetic design contains no moving parts, offering enhanced durability and long service life for demanding security applications. The M492 is UL 1034 and UL 10C 3-hour fire rated and meets BHMA Grade 1 standards.

Product Features

• Grade 1 double electromagnetic lock

• 1500 lb. holding force for high-security applications

• Dual voltage operation: 12/24 VDC

• Auto voltage selection

• Durable aluminum construction

• Fail-safe operation when code compliance permits

• Designed for access control and commercial door applications

• No moving parts for increased reliability and reduced maintenance

• Compatible with credential readers, push bars, and request-to-exit devices

• UL 1034 and UL 10C 3-hour fire rating

Product Specifications

• Manufacturer: Schlage Electronics

• Model: M492

• SKU: M492

• Grade: Grade 1

• Installation: Commercial

• Material: Aluminum

• Finish: 628 / US28 Satin Aluminum Clear Anodized

• Finish Family: Matte Silver

• Holding Force: 1500 lbs.

• Operating Voltage: 12/24 VDC

• Current Draw: 1.3A / 700mA @ 12/24 VDC

• Magnet Dimensions: 25-1/16" x 3" x 1-3/4"

• Product Dimensions: 25.06" L x 3" H x 1.75" W

• Pack Quantity: 1
