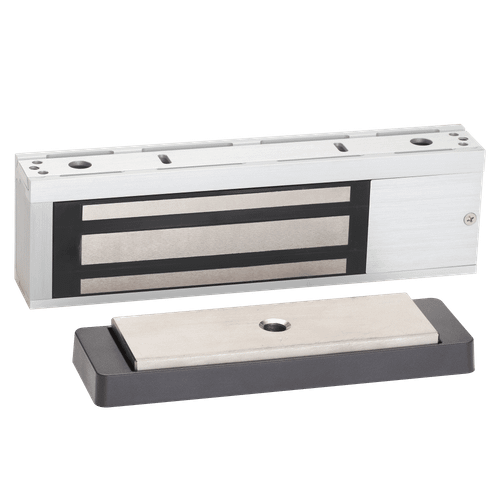

Schlage M452P Double Electromagnetic Lock, 1000 lbs. Holding Force, Magnetic Bond Sensor, Relock Time Delay, Door Position Switch

Schlage Electronics M452P Double Electromagnetic Lock – 1000 lbs. Holding Force with Magnetic Bond Sensor, Relock Time Delay & Door Position Switch

The Schlage Electronics M452P is a Grade 1 double electromagnetic lock designed for reliable access control security in commercial applications. Featuring a powerful 1000 lbs. holding force, this electromagnetic lock provides dependable door locking performance for high-traffic environments while supporting integration with electronic access control systems.

Equipped with a Magnetic Bond Sensor (MBS), Relock Time Delay, and Door Position Switch (DPS), the M452P offers enhanced monitoring and control by confirming lock engagement, managing relocking functions, and providing door status feedback. Its durable aluminum construction and satin aluminum clear anodized finish make it ideal for professional installations requiring both strength and a clean appearance.

The lock operates on 12/24 VDC power and is UL listed for commercial security applications, including UL 1034 and UL 10C 3-hour fire rating, ensuring dependable performance and compliance.

Key Features:

• Double electromagnetic lock with 1000 lbs. holding force

• Grade 1 commercial-grade security

• Includes Magnetic Bond Sensor for lock status monitoring

• Built-in Relock Time Delay for controlled access operation

• Door Position Switch for door monitoring

• Operates on 12/24 VDC

• Durable aluminum construction

• Satin Aluminum Clear Anodized finish (628/US28)

• UL 1034 and UL 10C 3-hour fire rating listed

• Ideal for commercial access control systems

Technical Specifications:

• Manufacturer: Schlage Electronics

• SKU: M452P

• Installation: Commercial

• Holding Force: 1000 lbs.

• Voltage: 12/24 VDC

• Current Draw: 1.5A / 760mA @ 12/24 VDC

• Magnet Dimensions: 20-9/16" x 3" x 1-3/4"

• Switch Type: Door Position Sensor

• Material: Aluminum

• Finish: 628/US28 Satin Aluminum Clear Anodized

• Dimensions: 20.56" L x 1.75" W x 3" H

• Shipping Weight: 20 lbs.

The Schlage M452P Double Electromagnetic Lock is an excellent solution for securing commercial doors where reliable locking strength, monitoring capabilities, and access control compatibility are required.
