8270 - Electrically Locked Outside trim continually locked electrically. Latchbolt retracted by key outside or by knob or lever inside. Switch or power failure allows outside knob or lever to retract latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob or lever always free for immediate exit. 24VAC or DC in stock, 330mA. (Fail Safe)
Handing
Non-Handed
Operating Voltage
24VDC
Mode of Operation
Fail Safe
Current Consumption
.25A at 24VDC
Operating Temperature
Max. 151°F (66°C), Min –31°F (-35°C) Min –31°F (-35°C)
ANSI/BHMA
ANSI/BHMA A 156.13 Grade 1
Warranty
1 Year Warranty
Weight
4.0000

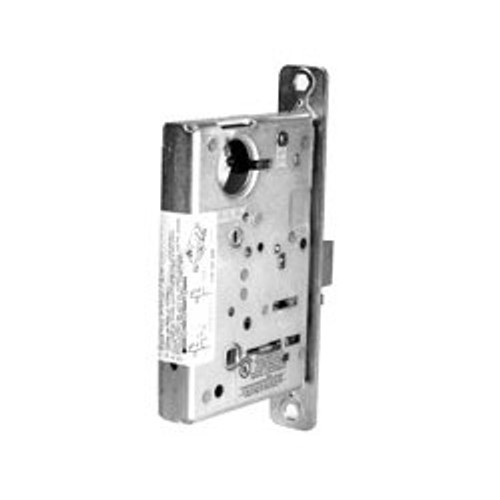

SARGENT Sargent 8270-24V-10 Electromechanical Mortise Lever Lock Body Only Fail Safe (24VDC)
