What is the best commercial mortise lock?

The Schlage L9000 is the most widely specified. The Sargent 8200 has the highest cycle count at 14M+. The Corbin Russwin ML2000 is heavily specified on government projects. All are ANSI/BHMA Grade 1.

What is the difference between Grade 1 and Grade 2 locks?

Grade 1 locks are tested to 1,000,000+ cycles with higher impact resistance. Grade 2 are rated for 250,000 cycles. Grade 1 is standard for commercial exterior doors and high-traffic areas.

What is the best door lock for school classrooms?

The Schlage ND78 classroom security lock allows locking from inside without opening the door, meets ADA requirements, and maintains fire egress compliance.

What is the difference between Schlage ND and ALX?

ND is Grade 1 with 1M+ cycles and electrified options. ALX is Grade 2 with 250K cycles and modular chassis at lower cost. They share the same lever designs.

What is the most common commercial door closer?

The LCN 4040XP is the most widely specified surface-mounted commercial door closer in the US, covering sizes 1-6 and all three mounting types.

What locks are used in hospitals?

Grade 1 mortise locks on high-traffic doors, cylindrical locks on patient rooms, electronic access with audit trails on pharmacy and restricted areas.

How much cheaper is wholesale vs retail door hardware?

Wholesale pricing on commercial door hardware is typically 20-40% below manufacturer list price. Project quotes for large orders can be even lower.

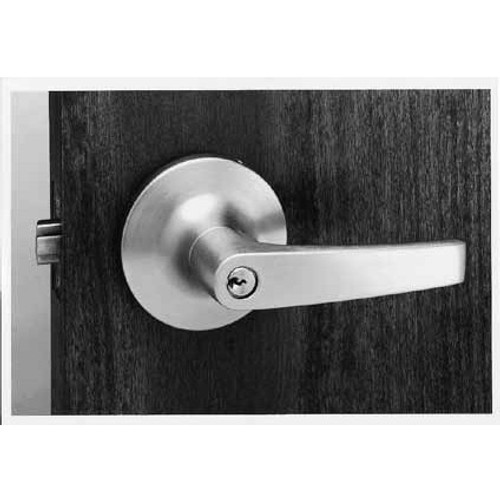

Marks USA Marks 195FEU-26D-24VDC Survival Electrified Cylindrical Lever Lock (Fail Secure)

$530.00

(No reviews yet) Write a Review

Brand: Marks USA
SKU:: 195FEU-26D-24VDC
Condition:: New

$530.00

Description
Show Reviews

Additional Information

Manufacturer	Marks USA
Model	195FEU-26D-24VDC
Lock Functions	FEU - Electrically Unlocked (Fail Secure): Outside always locked until unlocked by key or electrically energized. Deadlocking latch by lever inside. Lever only.
Door Thickness	1-5/8" to 1-7/8" standard
Backset	2-3/4" backset
Handing	Non-Handed
Keying/Keyways	MARKS “C” keyway, 6 pin w/ 2 keys
Roses	Thru-bolted, 3-1/2" diameter, spring loaded, automatically adjust for door thickness
Strikes	4-7/8" x 1-1/4" ASA Strike with curved lip
Mode of Operation	Fail Secure
Electrical Specifications	24V/DC, .21 Amps
Certifications	ADA Recommended
U.L. Listed	3 Hour Fire Rating
Warranty	Lifetime Mechanical Limited Warranty
Weight	7.0000
