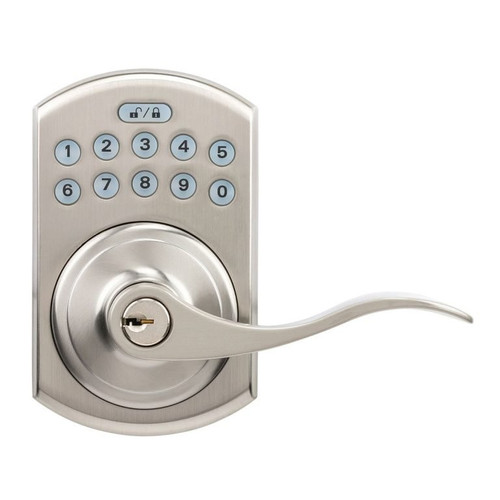

KIC3500 Series Residential Grade Lock

Ideal for any Home, Small Office or Rental Property
The KEYINCODE 3500 Series is a residential-grade lock ideal for any home, small office or vacation rental property. It is available with a lever handle or deadbolt latch. New Ble-Wi-Fi functionality makes it easier than ever to set up your lock in the KEYINCODE app. It also allows admins to lock/unlock the device within Bluetooth® range.

• Designed to be easy to install, connect, manage and use
• Embedded Wi-Fi for standard connectivity. No gateway or hub required
• BLE Enabled: Accelerate lock onboarding and Wi-Fi setup via Bluetooth®
• Remote control and monitoring from anywhere using your smartphone or laptop
• Supports passage mode, auto-lock mode and passage schedules
• Lock retains all programming and data even in the event of power outage or internet interruption

Technical Specification

Environment: For normal internal and external use
Exterior Dimensions: 5 ⅛ (H) x 3 ⅛ (W) x 2 ½ (D) in.
Interior Dimensions:
Deadbolt: 7 ½ (H) x 2 (W) x 2 ¾ (D) in, Lever Handle: 7 ½ (H) x 2 (W) x 3 ⅜ (D) in.
Backset: 2⅜ in. (60mm) and 2¾ in. (70mm)
Construction: Zinc alloy, suitable for indoor & outdoor use
Operating Temperature: -31°F (-35°C) to 151°F (66°C)
Thickness: 1⅜ – 2 in. (35mm – 50mm)
Door Handing: Non-handed, field reversible
Keypad: 10-digit lighted keypad
Batteries: 4 AA (not included)
Keyway: KW1 5-pin keyway
Code Length: 4 – 10 digits
Code Capacity: Up to 3,500
Communication: Single band 2.4GHz Wi-Fi (IEEE802.11b/g/n) with WPA/WPA2
