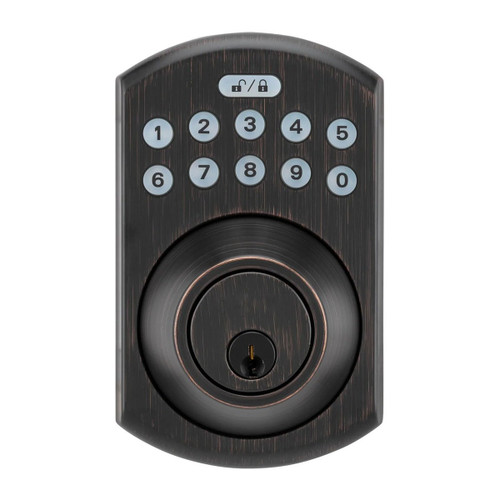

KIC3500 WB Series Residential Grade Lock - Satin Brass Oil Rubbed

Residential deadbolt lockset.

The KIC3500 Series is a residential-grade smart lock designed for homes, small offices, and vacation rental properties, providing a simple and reliable solution for modern access control. Available with a lever handle or deadbolt latch, it offers flexibility to suit a range of door applications.

With embedded Wi-Fi and Bluetooth® (BLE) connectivity, the lock enables easy setup and management through the KEYINCODE app. Bluetooth® accelerates onboarding and Wi-Fi configuration, while built-in Wi-Fi allows users to remotely control and monitor access from anywhere using a smartphone or laptop—without the need for an additional gateway or hub.

Designed for ease of use, the KIC3500 supports features such as passage mode, auto-lock mode, and scheduled access, making it ideal for managing entry in residential and rental environments. The lock retains all programming and data even during power outages or internet interruptions, ensuring consistent and reliable operation.

Technical Specification

Environment: For normal internal and external use
Exterior Dimensions: 5 ⅛ (H) x 3 ⅛ (W) x 2 ½ (D) in.
Interior Dimensions:
Deadbolt: 7 ½ (H) x 2 (W) x 2 ¾ (D) in, Lever Handle: 7 ½ (H) x 2 (W) x 3 ⅜ (D) in.
Backset: 2⅜ in. (60mm) and 2¾ in. (70mm)
Construction: Zinc alloy, suitable for indoor & outdoor use
Operating Temperature: -31°F (-35°C) to 151°F (66°C)
Thickness: 1⅜ – 2 in. (35mm – 50mm)
Door Handing: Non-handed, field reversible
Keypad: 10-digit lighted keypad
Batteries: 4 AA (not included)
Keyway: KW1 5-pin keyway
Code Length: 4 – 10 digits
Code Capacity: Up to 3,500
Communication: Single band 2.4GHz Wi-Fi (IEEE802.11b/g/n) with WPA/WPA2
