Kantech Telephone Entry System, 250 Tenants (Max. 3000 Tenants, See Options), KTES EntraPass Software, TR1640P/UL Transformer (1), KTES-POSTAL (1) and KTES-ACC-KIT Accessory Kit (1). (US Only)


Quick Overview



Kantech Telephone Entry System Features That Make a Difference:  Stand-alone or integrates with an access control system  Convenient remote programming and management with EntraPass software  Electronic directory with a capacity of up to 3,000 tenants  Reader support for access control features  Dynamic visitor language selection  Large, vandal-resistant 4-line, 20-character LCD with high contrast and backlighting  Easily programmable directly from the keypad  Alternate telephone # available to reach tenant  Contextual function buttons for easy system operation  Vandal- and weather-resistant stainless steel housing  Versatile alarm and trouble reporting capabilities  Onboard 128-bit encrypted, secure IP communication with EntraPass  Optional covert color video camera for added security  Supervised battery backup ensures continuous operation for a minimum of four hours  One telephone line supports up to five units

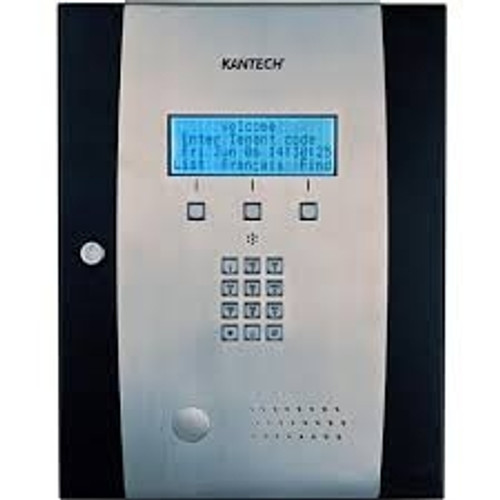

The Kantech Telephone Entry System (KTES) is an ideal entry system for small, medium, and large sites with an existing access control system, or installations that require telephone entry access only. The system provides visitor access control to sites such as apartment buildings, gated communities, condominiums, office buildings, and industrial sites. A tenant communicates directly with a visitor using the KTES and can grant or deny admittance directly from a telephone landline or cellular phone with the touch of a button. An attractive vandal- and weather-resistant metal enclosure houses a keypad with both audible and visual confirmation of user actions. The large, 4-line, 20-character backlit LCD provides easy-to-understand multi-lingual user prompts that allow visitors to scroll through an electronic directory which includes tenants’ names, apartment/suite numbers, or calling codes. Three contextual function buttons make it easy to quickly navigate through the interface. For additional security, an optional covert color video camera lets tenants see who is at an entrance from their own television, on a specified cable station Designed as a stand-alone or integrated unit, the system controls one door, three auxiliary relays, and supports postal lock and REX access. For larger commercial installations, the KTES integrates with EntraPass and Kantech controllers to provide a complete access control system. All programming of the system can be done directly on the keypad or remotely from a PC via a modem, Ethernet connection, or RS-485 interface. A simplified version of the EntraPass software is included with the KTES which allows for fast configuration and firmware upgrades, live transaction monitoring, modification and addition of tenant list, and system backup. The system also provides Wiegand inputs and outputs so that it can be connected to external door controllers. For added convenience, the KTES maintains a local event log which can be viewed directly on the LCD. If a more detailed event log is needed, the system also reports all events directly to the EntraPass system.

Additional Information

Manufacturer Kantech
Download No
