Yale MOR8890FL-24V-REX-626 Fail Safe Electrified w/ Request To Exit Mortise Lock Lever Trim w/ Mortise Cylinder (24VDC)

Yale MOR8890FL-24V-REX-626 Fail Safe Electrified w/ Request To Exit Mortise Lock Lever Trim w/ Mortise Cylinder (24VDC)

Yale MOR8890FL-24V-REX-626 Fail Safe Electrified w/ Request To Exit Mortise Lock Lever Trim w/ Mortise Cylinder (24VDC)

$818.00

(No reviews yet) Write a Review

Brand: ACCENTRA (formerly YALE)
SKU:: MOR8890FL-24V-REX-626
Condition:: New

$818.00

Description
Show Reviews

Additional Information

Manufacturer	Yale ASSA ABLOY
Model	MOR8890FL-24V-REX-626
Lock Functions	8890FL - Power off – outside lever active. Power on – outside lever locked. Auxiliary latch deadlocks latchbolt. Inside lever always free. Mechanical key override by outside when locked
Door Thickness	Standard for 1-3/4" thick doors.
Backset	2-3/4" only
Case	Wrought steel, zinc dichromated
Handing	Handed (Field Reversible)
Keying/Keyways	Standard 1-1/8" Mortise Cylinder 2153, E1R (Para) Keyway with 2 Keys
Latchbolt	3/4" throw, stainless steel two-piece anti-friction camming action
Faceplates/Armor Fronts	8" x 1-1/4"

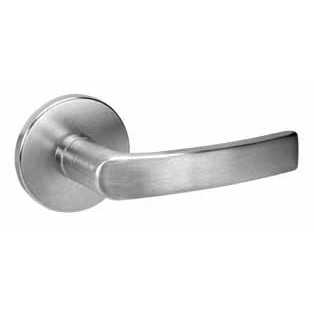

Exposed Trim	MO Lever Handle: Cast
Roses	CO Rose: Stamped
Mode of Operation	Fail Safe
Voltage	330mA Peak @ 24VDC 612mA Steadystate @ 24VDC
Monitoring Options	Request to Exit - An SPDT switch that monitors activation of the free lever (not available with knob trim)
U.L. Listed	UL Listed for use on fire doors having a rating up to and including 3 hours and for use on 20 minute wood doors.
ANSI/BHMA	Certified ANSI/BHMA A156.13 Grade 1
Warranty	2 Year Warranty
