Trine Access Technology Trine 4100 Cylindrical & Mortise Lock Electric Strike Fail Secure

$472.00

(No reviews yet) Write a Review

$472.00

Additional Information

Manufacturer	Trine Access Technology
Model	4100
Dimensions	4-7/8" H x 1-3/8" D x 1-5/8" W
Strike Body	3-3/8" H x 1-3/8" D x 1-5/8" W

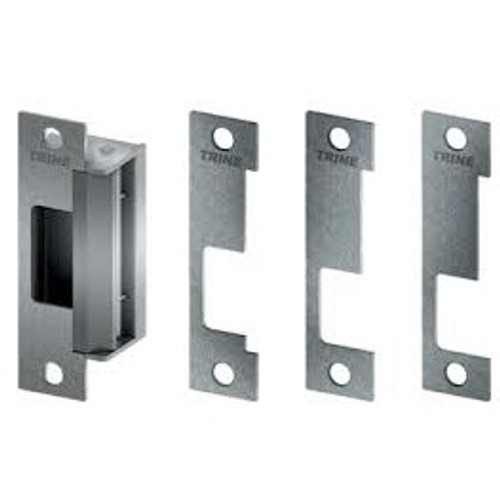

Faceplate	4 Faceplates Included
Door Lock Type	Cylindrical, Mortise, Mortise Exit Device
Mode	Fail Secure
Frame Application	Hollow Metal, Wood
Voltage	Field Selectable
Current	AC/DC
Duty	Continuous/Intermittent
Sound	Buzz/Silent
Compliances	UBC 7-2, Uniform building Code
U.L. Listed	WH recognized 3-hour fire rated -- UL10C, Fire Tests of Door Assemblies
ANSI/BHMA	BHMA Grade 1: ANSI/BHMA A156.5
Warranty	2 Year Warranty
Weight	3.0000
