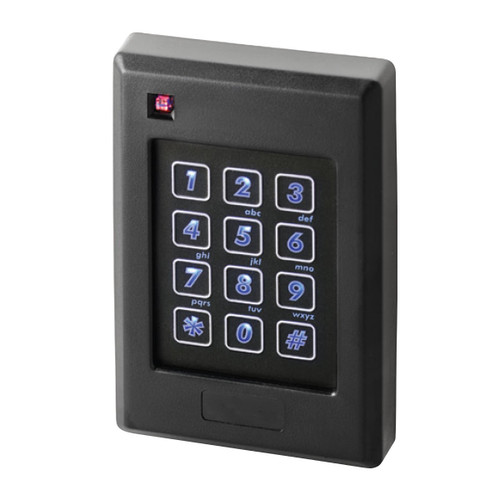

KIC2500 Single Gang Box MiFare Card Reader 6.4

The KIC2500 Single Gang Box MIFARE Card Reader 6.4 is designed to provide reliable credential reading for compatible access control installations. Housed in a single gang box format, it is suitable for commercial and institutional environments where controlled entry is required.

This reader integrates with supported KIC2500 access control systems and is intended for applications requiring consistent performance and secure credential recognition.

Technical Specification

Supported Technologies: Contactless smartcard and Bluetooth Low Energy (BLE)
Mounting: Fits standard single-gang wall box and flat surfaces
Dimensions: 3.0″ W × 4.6″ H × 0.75″ D (76 mm × 117 mm × 19 mm)
Voltage Range: +8 to 14 VDC
Current Draw: 60 mA typical, 250 mA peak @ 12 VDC
Read Range: Physical Credentials: Up to 2″ (51 mm), Mobile Credentials: Up to 15 ft (4.6 m)
LED Indicators: Four-state (Red, Green, Amber, Off)
Audio: Built-in beeper
Environmental Ratings: IP67 rated (dust and water-resistant)
Operating Temperature: –31°F to 140°F (–35°C to +60°C)
Operating Humidity: 0% to 90% RH
Color: Black (snap-on cover included)
Certifications: FCC, IC, CE, UL294, ULC 60839-11-13
Cabling Requirements: 24 AWG minimum, multi-conductor stranded, foil shielded
