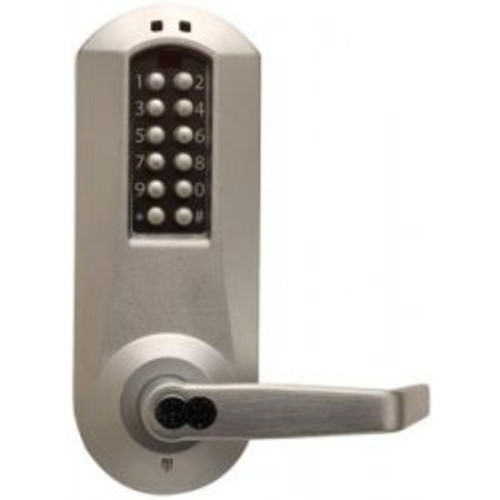

Dormakaba E-Plex E5210BWL Lever Electronic Push Button Lock Key Bypass Rim Exit Trim

$881.17

(No reviews yet) Write a Review

Description
Show Reviews

Extra heavy-duty exit trim lock. ANSI/BHMA Grade 1 Certification. Includes battery pack – mounts above push-bar device on interior side of door
Interfaces with today’s leading panic bars. Compatibility: Arrow S1250, Arrow S3800, Corbin Russwin 5200 / 5200A, Detex 10 / F10, Dorma 9300 / 9300F, Monarch 18R / F-18R (requires special K hub adapter), Precision 21 / FL 21, Sargent 2828, Sargent 3828, Sargent 8800, Sargent 8888, Von Duprin 22 / 22F, Von Duprin 98 / 98F, Von Duprin 99 / 99F, Yale 7100
Supports 3000 users per door; 4-8 digit user access codes (100 million possible code combinations)
Network and PC Programming (offline): Requires laptop or netbook and E-Plex Enterprise Implementation Kit (sold separately at checkout)
Time-Determined Access: Via software, program up to 16 different access schedules, and up to 32 holiday/vacation time blocks (i.e., door auto-unlocks at 9am, and auto-locks at 6pm, or users in group 1 only have access from 10am to 4pm)
First Manager In Feature: Lock does not go to passage mode (enter without code) until the first privileged user’s credential is presented
Passage mode can be manually toggled at the lock
6 different authority access levels let you determine who has privileges to specific lock functions
Battery Operation: Up to 180,000 cycles on 4 AA alkaline batteries, included. Batteries located in interior housing cover. Low battery indicator. Non-volatile memory; lock’s data preserved if batteries fail
Tested extensively in outdoor and marine environments – performed flawlessly
Fits virtually all left and right swing doors
Track Entries: Who entered and when with audit trail feature (reader unit stores last 30,000 events)
Quick and Easy Installation: Patented electrobolt technology provides “sandwich” fitting. No wiring to or through door; no risk of pinched wires Instructions and two-hole drilling template supplied
Out of the Box Ready: Programming and operating manuals provided
Optional remote unlock feature
Multiple architectural finishes including standard satin chrome (626) and premium finishes. Premium finishes may be subject to 2-3 week lead time
Emergency Key Override: BEST SFIC prepped. IC CORE NOT INCLUDED
3-year manufacturer warranty; built-in warranty counter

Exterior Dimensions	12 5/16 (H) x 4 1/4 (W) x 4 1/16 (D) in.
Inside Dimensions	3 7/8 (H) x 3 3/16 (W) in.
Door Thickness Minimum	1 3/4 in.
Door Thickness Maximum	2 1/4 in.
Battery Type	AA
Battery Life	180,000 Cycles
Code Length	4 to 8 Digits
Code Capacity	3,000
Event Audit Trail	30,000
Environmental	Indoor/Outdoor
Outside Operating Temperature Range	-31° to 151°F (-35° to 66°C)
Inside Operating Temperature Range	-31 °F to +130 °F (-35 °C to 55 °C)
Construction	Solid cast exterior housing, Solid cast, ADA-compliant levers
Door Handing	Non-Handed
Door Prep	Through-Bolt Hole(s)
Door Stile Width	Minimum 5 in.
Manufacturer	dormakaba
Brand	E-Plex Wireless, Kaba E-Plex
Lock Features	Audit Trail, Passage Mode, Scheduling, Timed Codes
Handle Type	Lever Handle Door Locks
Locking Device	Panic/Exit, Exit – Rim
Door Opening	Standard
Access Type	Key, Keypad – Digits
Keyway	BEST SFIC PREPPED (less core)
Fire Rating	3-hour UL/ULC fire rating for A labeled doors
ANSI Rating	Grade 1 (Best)
BHMA Rating	Grade 1 (Best)
Weight	9.5 lbs
Warranty	3 Year Manufacturer
Authentication	Single Factor
