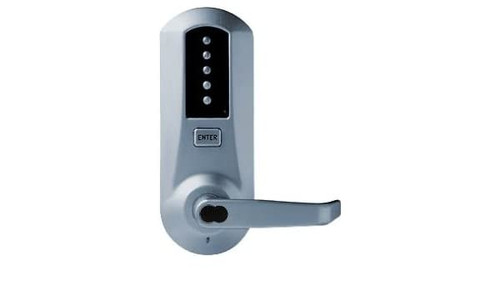

Dormakaba Simplex 5000 Series Model # 5010 Pushbutton Lock used with exit device; Interchangeable Key override (Less Core)

Features :

• Single access code - one easy to manage code for all users

• Lock is easily programmed via keypad without removing lock from the door

• Non-handed, pre-assembled for left-hand door installations - easily changed in the field

• Small format interchangeable cores, and large format removable cores (Less Core)

• Locking Device Options :




  • Rim Exit Device : Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)




    • Universal mounting plate (included) simplifies installation and eliminates any requirement to stock different locks/plates forvarious exit devices - See Compatible Exit Devices below

• Operation Mode Options :

  • Exit trim may be "dogged" if exit device allows




• Certification and Standards :



  • Americans with Disabilities Act (ADA)



  • ANSI/BHMA 156.2, Grade 1 Certification; weather resistant, wear tested for extensive use in indoor and outdoor application



  • 3-hour UL/ULC fire rating for "A" label doors





• Warranty : 3-year warranty

• Compatible Exit Devices Include :



  • Arrow S1250


  • Arrow S3800


  • Corbin Russwin 5200/5200A


  • Detex 10/F10


  • Dorma 9300/9300F


  • Monarch 18R/F-18R


  • Precision 21/FL 21


  • Sargent 2828


  • Sargent 3828


  • Sargent 8800


  • Sargent 8888


  • Von Duprin 22/22F


  • Von Duprin 98/98F


  • Von Duprin 99/99F


  • Yale 7100
