Falcon / 24 Series Exit Devices 24-R-EO 4 US3 — Falcon Exit Device 24 Series Exit Device, Rim, Exit Only, 4 Ft. Device, Bright Brass
- 24-R-EO 4 US3
24-R-EO 4 US3 — Falcon Exit Device
24 Series Exit Device, Rim, Exit Only, 4 Ft. Device, Bright Brass
Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse. The Falcon 24 Series exit devices fit the bill with some of the toughest, most reliable performance in the business.
Sleek, streamlined styling and narrow stile device applications mean a smart solution for your building design, as well as its use. And since they’re backed by one of the best names in the business, you can be sure you’re getting the utmost value, reliability, and durability.
Features and Benefits
- The streamlined design includes a flush-end cap for clean lines and a more attractive installation
- Stainless steel push pad cover for a scratch-resistant surface
- Clean design with no exposed screws or rivets on the back of the device
- Patent-pending deadlocking technology ensures reliable security
- One trim input design for maximum versatility
- Extruded aluminum construction delivers greater strength and impact resistance
- Hand: Non-handed
- Functions: 24-EO (exit only) has all functions built-in.
- Finishes Available: US28, US3, 32D
- Strikes: 299 strike standard.
- Latchbolt: Stainless steel, 3⁄4" throw.
- Dogging feature: Half turn hex dogging standard.
- No threaded parts to wear out.
- Doors: 1 3⁄4" thick, wood or metal.
- Door size: 3''
- Min. Stile: 3 1/2''
- Min. Opening Door width: 2' 7 1/2''
- Projections: 2 3⁄4" maximum, 2" dogged.
- Fasteners: All mounting screws are concealed.
- Center case & working parts: Wrought steel with heavy wrought and sintered metal parts.

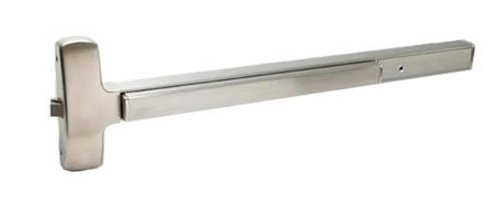

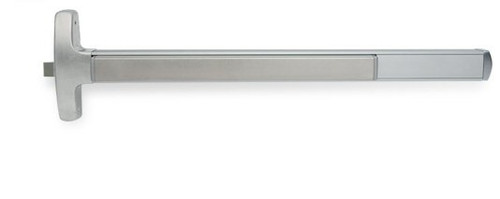

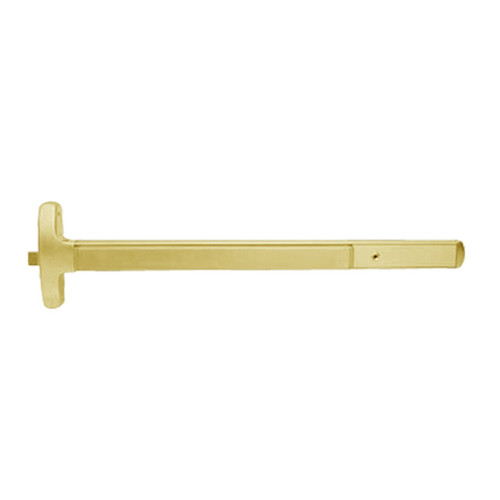

*The image may not represent the actual product or finish
