Altronix Altronix AL624 Single Output Linear Power Supply Board

$194.97

Quick Overview

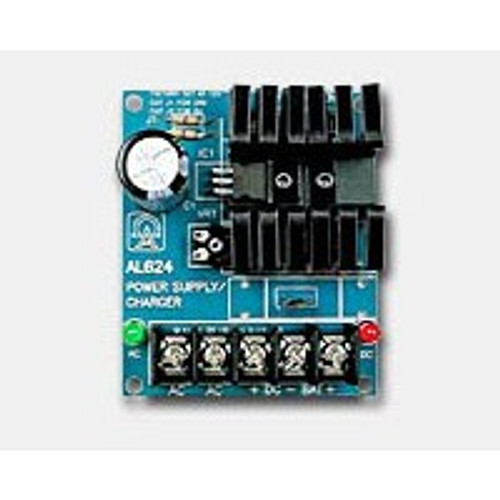

Altronix Altronix AL624 Single Output Linear Power Supply Board

Details

Additional Information
Manufacturer Altronix
Model AL624
Dimensions 2.5" W x 3" L x 1.5" H (63.5mm W x 76.2mm L x 38.1mm H)
Outputs Switch Selectable 6VDC-12VDC-24VDC
Input Voltage 16VAC to 24VAC, 20VA to 40VA
Output Voltage 6VDC or 12VDC
Output Current (AMPS) 1.2 amp supply current or 24VDC @ 0.75 amp supply current.
U.L. Listed UL Listed
Warranty Lifetime Warranty
Weight 0.2000



Additional Information

SKU AL624
Manufacturer Altronix
Download No
