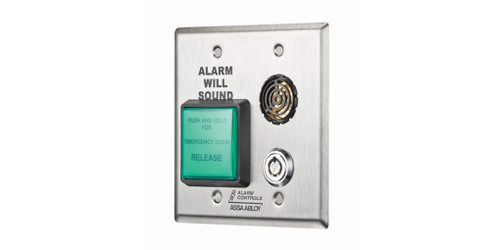

Alarm Controls DE-1 Delayed Egress Timer

This micro-controller based unit will provide an effective means of locking an exit door while still providing egress during an emergency.

• Mounted on double gang stainless steel wall plate


• Operates on 12 or 24VDC


• 2-second nuisance delay (standard), 1 and 3-second nuisance delay option available


• Keyswitch reset and re-lock (optional auto reset)


• S.P.D.T. instant contacts for remote alarm signal


• S.P.D.T. timed contacts for unlocking the door


• Contacts rated 5 Amps @ 35VDC


• Countdown buzzer and flashing lamp during timing mode


• Hi-brightness built-in LED lamp


• Specifications • Contacts rated 5A at 35 VDC • Operates on 12 or 24 VDC • SPDT instant contacts for remote alarm signal • SPDT timed contacts for unlocking door Features • Mounted on double gang stainless steel wall plate • 2 second nuisance delay (standard), 1 and 3 second nuisance delay option available • Keyswitch reset and relock (optional auto reset) • Countdown buzzer and flashing lamp during timing mode • Hi-brightness built-in LED lamp
