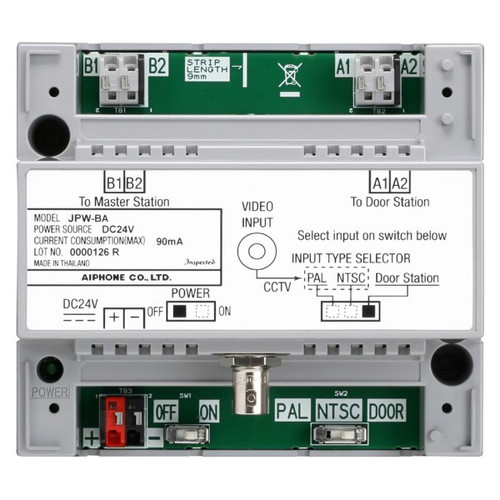

Aiphone JJPW-BA Long Distance CCTV Adapter, Surface/Wall/DIN-Rail Mount, 24 Volt DC, 4-7/8" Width x 2-7/16" Depth x 4-5/16" Height

$297.44

Quick Overview

JP-8Z
COMPONENTS
Distribution Adaptor for Video Sub Master Stations

Details

AIPHONE | JPW-BA
Long Distance CCTV Adapter, Surface/Wall/DIN-Rail Mount, 24 Volt DC, 4-7/8" Width x 2-7/16" Depth x 4-5/16" Height

Long distance video adaptor for the camera to monitor wire run. Compatible with JP system only. Requires 85160210C wire for a long distance run.

FEATURES;

  • Extends wiring distance from door stations to master stations up to 820′ max.
  • Requires low capacitance Aiphone wire #851602 or #851602DBW
  • CCTV Adaptor that allows for an analog CCTV camera to be connected in conjunction with the GT-D audio door station
  • One adaptor unit for each video door station located beyond the standard specified wire distance

    Mounting

    DIN rail (included)

    Wire Type

    2-cond., low cap, PE, solid, non-shielded - use Aiphone #851602 or #851602DBW (direct burial)
    BNC / Coax for CCTV camera

    Wire Distance

    Adaptor to Door Station: 650'
    Adaptor to Master Station: 330'

    Temperature Rating

    32-104°F (0-40°C)

    Dimensions

    4-5/16" H x 4-7/8" W x 2-7/16" D

Additional Information

SKU JJPW-BA
Manufacturer Aiphone Security
Download No
