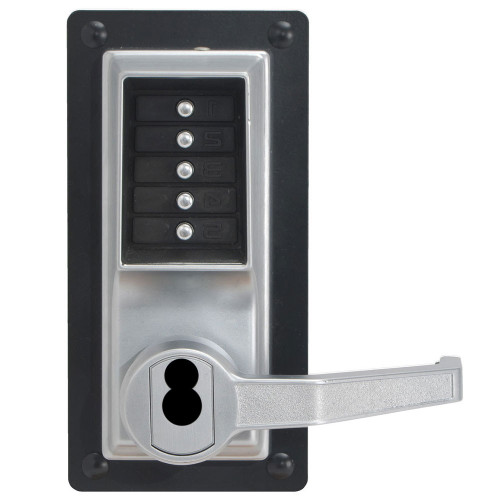

Kaba Ilco Unican Simplex LP1000 Series Model LP1020 Panic/Exit keyless lock with Interchangeable Core KEY OVERRIDE (less the core)

Click on above image to view full picture

More Views

Kaba Ilco Unican Simplex LP1000 Series Model LP1020 Panic/Exit keyless lock with Interchangeable Core KEY OVERRIDE (less the core)

Maximum number of characters: 20

* Required Fields

Add Items to Cart

Quick Overview

100% Mechanical HEAVY DUTY push button lock
Thousands of possible codes combinations
Auto-locking (unless you have 'dogged' the push bar - hold bar latch back)
LP1000 lock is unaffected by 'doggin' of push bar Satin chrome US26D finish standard.
Available in special antique brass, polished chrome, and bright brass finishes.
Special finishes may be subject to a small lead time
Three hour UL (underwriter's laboratory) fire rating on "A" rated doors
Fits left and right swinging doors
All hardware (excluding panic bar) and instructions included with order
Low maintenance, no batteries or wires
Fits nearly all hinged doors -
Email to a Friend

Be the first to review this product

KABA LP1020 With Key Override Option (core not included).

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.


    • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

      Locking Device Options: Rim Exit Device: Compatible with most leading brands of Exit Devices—see list below (Exit Device and mounting hardware not included)

      Exit Device Compatibility:

      Black & Decker (K-12) QED111/112 Detex 10/F10 Series
      Cal Royal 5000/F5000 Dorma 9100, 9300
      Dorex 9500PR/9500FR Dorex 8500R/8500F
      Detex Advantex Series 10, 20, 21,40, 50, 51
      Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
      Von Duprin 22, 88 NL, 98, 99

      *(requires special K-Hub Adapter Kit)

      Cannot be used with mortise design or vertical rod Exit Devices

      ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba’s knowledge

      Number of Codes: Single access code—one easy-to-manage code for all users

      Handing: Factory-handed; not field reversible

      Operation Modes:

      • Pushbutton Access
      • Exit Device may be "dogged" without affecting the LP1000

      Economical: A cost effective access control solution

      Technical Data:

      Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever

      Numeric Keypad: Vandal resistant, solid metal pushbuttons

      Handing: Factory-handed; not field reversible

      Standard Finishes:

      • Antique Brass 05 (609)
        Antique Brass
      • Satin Chrome 26D (626)
        Simplex Satin Chrome Finish - 26D (626)

      Optional Finishes:

      • Bright Chrome 026 (625)
        Simplex Bright Chrome Finish - 026 (625)
      • Bright Brass 03 (605)
        Simplex Bright Brass Finish - 03 (605)

      Exit Device Strike: Supplied with Exit Device


      • 2¾" (70 mm) tailpiece for Exit Device operation from outside
      • Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)

      Minimum Stile Recommended: 5" (127 mm)

      Weight: 8 lbs. (3.6 kg)

      Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included

      Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included

      Door Preparation: Recessed through bolts may be required for Exit Device preparation

      Door Thickness:

      • 1⅜" (35 mm) to 2¼" (57 mm)
      • Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)

      Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever

      Durability: Weather resistant

      Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors

      Warranty: 3-year warranty

      Simplex LP1000 Installation Instructions

    Simplex LP1000 Template

Simplex LP1000/8100 Changing the Code

Reset Unknown/Lost Simplex Combination Code

- See more at:

Model LP1020
SKU LP1020
Manufacturer KABA Simplex / Eplex
